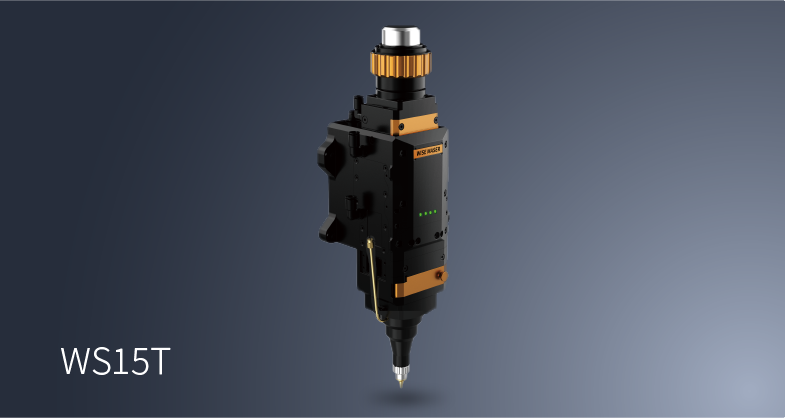

    Product Introduction

    The WM series of auto-focusing cutting head (WM04T, WMO6T, WM15T) support laser tube cutting from 4kW-15kW. all lenses of the laser head are designed with external pull-out design, making it convenient for customers to quickly maintain and replace lenses, greatly improving customer efficiency; Compatible with various mainstream laser fiber interfaces such as QBH, G5, Q+, LOE3.2, etc.

    Features
    Both bus and non-bus systems can be applied, with high compatibility and fast and accurate continuous focus position adjustment, significantly improving customer processing efficiency.
    The internal structure is highly sealed, with a completely photoelectric separation design, effectively protecting the optical components from contamination by dust and transmission machinery, and extending the service life of the optical components.
    Intelligent monitoring data real-time feedback, laser head built-in various sensors, can provide real-time feedback on parameters such as lens temperature and gas pressure inside the cutting head during the processing, and quickly judge the internal usage of the laser head through external four-color lights.
    Four protective lenses, providing efficient protection for collimation and focusing lenses.
    Compatible with various mainstream laser fiber interfaces such as QBH and G5.
    Easy to maintain, all lenses of the laser head are designed with external pull-out design, making it convenient for customers to quickly maintain and replace lenses, greatly improving customer efficiency.

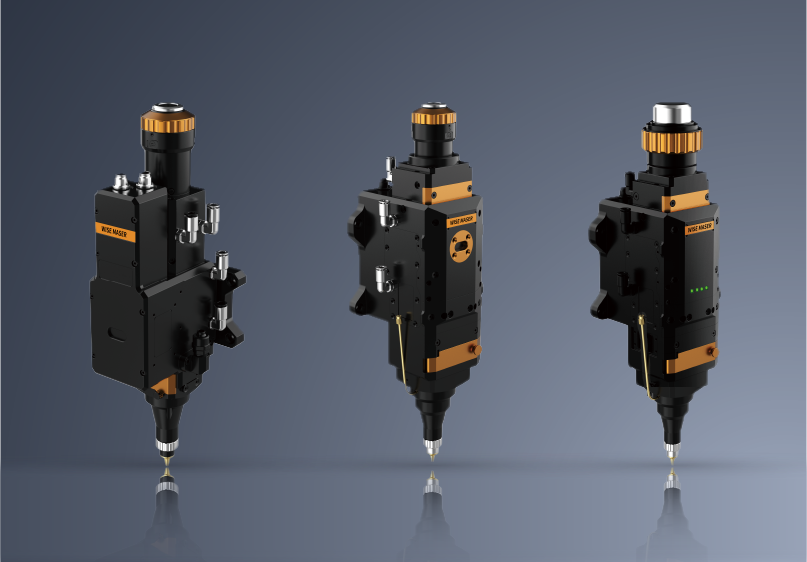

    Product Specifications

    WMO4T Parameters

    Collimation focal length

    F75mm;F100mm

    Focus distance

    F125mm,F150mm,F200mm

    Aperture

    28mm

    Horizontal adjustment range

    ±1.5mm

    Vertical Focusing Range

    10mm-12mm

    Focusing Accuracy

    0.05mm

    Collimator Protective Lens Specifications

    D24.9mm×1.5mm

    Focus on Medium/Lower Protective Lens Specifications

    D27.9mm×4.1mm

    Auxiliary gas pressure

    ≤30bar

    Weight

    3.5Kg



    WM06T Specifications

    Collimation focal length

    F100mm

    Focus distance

    F200mm

    Aperture

    35mm

    Horizontal adjustment range

    ±1.5mm

    Vertical Focusing Range

    ±40mm

    Focusing Accuracy

    0.01mm

    Specifications for the Protective Lens on the Collimator

    D25.4mm×4mm

    Specifications for Protective Lens in Collimator

    D34mm×5mm

    Focus on Mid-to-Low Range Protective Lens Specifications

    D34mm×5mm

    Auxiliary gas pressure

    ≤30bar

    Weight

    6.5Kg



    WM15T Specifications

    Collimation focal length

    F100mm

    Focus distance

    F200mm/F250mm

    Aperture

    35mm

    Horizontal adjustment range

    ±1.5mm

    Vertical Focusing Range

    ±40mm

    Focusing Accuracy

    0.01mm

    Specifications for the Protective Lens on the Collimator

    D25.4mm×4mm

    Specifications for Protective Lens in Collimator

    D34mm×5mm

    Focus on Medium/Lower Protective Lens Specifications

    D34mm×5mm

    Auxiliary gas pressure

    ≤30bar

    Weight

    7.8Kg
