Product Introduction

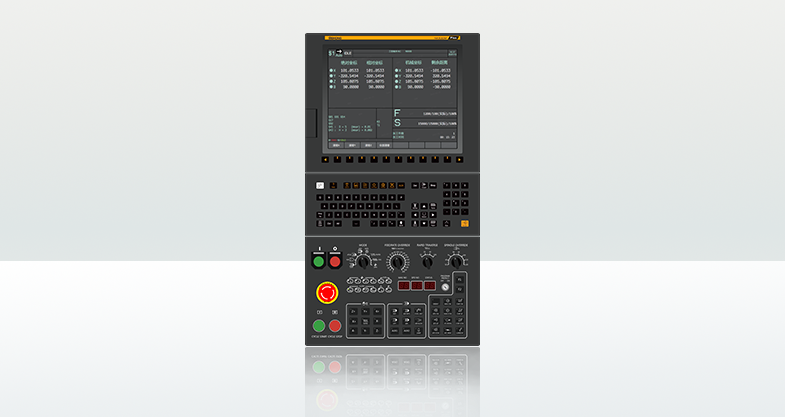

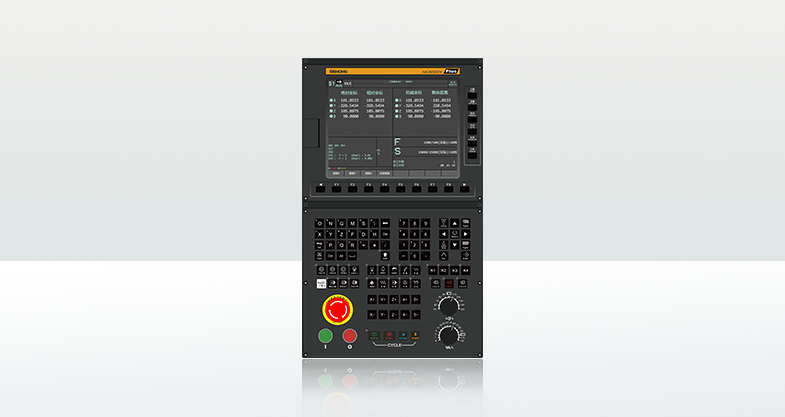

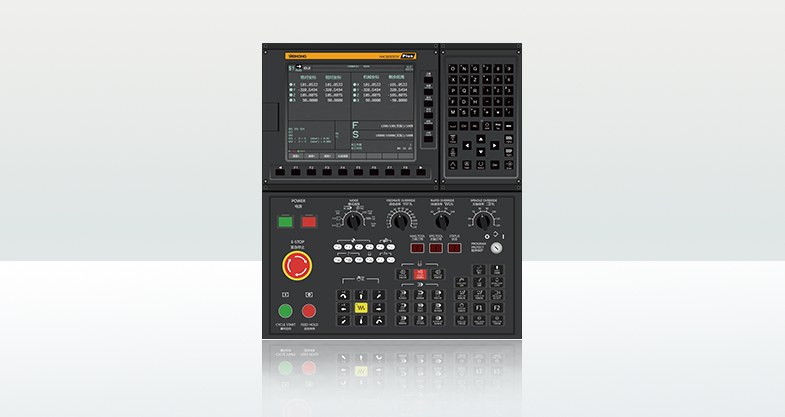

Weihong NK300CXPLUS/NK530M PLUS All-in-One CNC System, 10.4/15-inch screen, Intel dual-core CPU high-performance processor, 32/64-bit system with isafe3.0 encryption; 2GB RAM, 30GB hard drive, large capacity; suitable for standard precision engraving machines, machining centers, and gantry systems. Equipped with HST high-speed trapezoidal algorithm for high-speed, high-quality machining; supports 3-5 axis interpolation with up to 10 axes, compatible with M2/M3/EtherCAT bus protocols. Instant file loading with support for files up to 4GB.

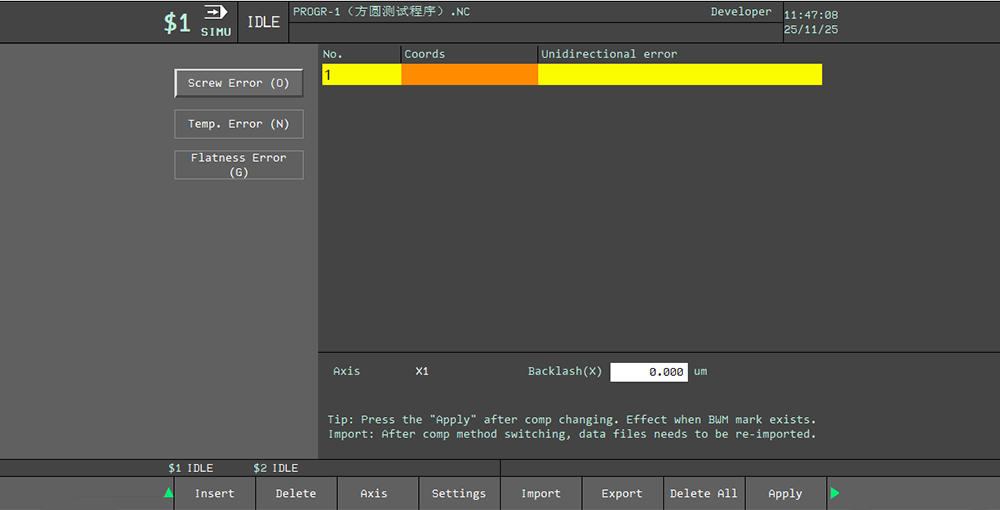

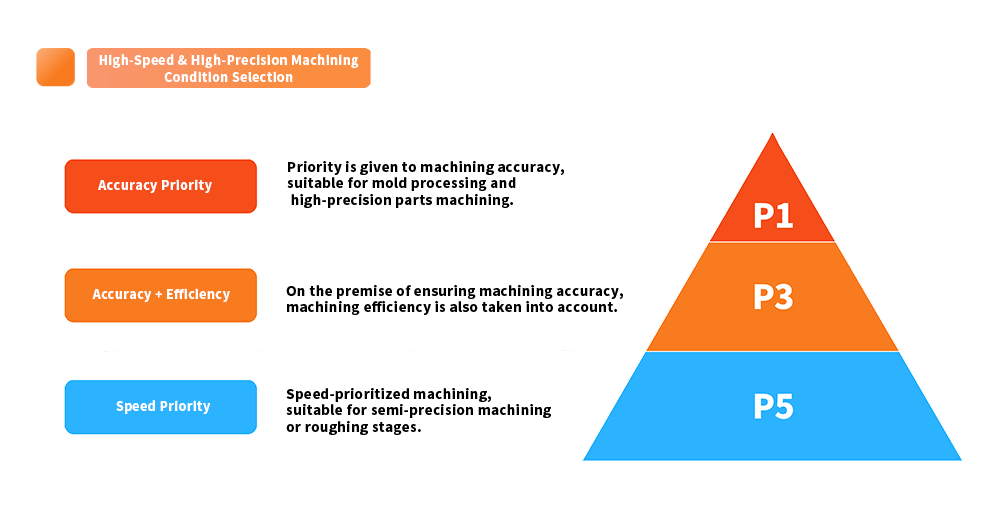

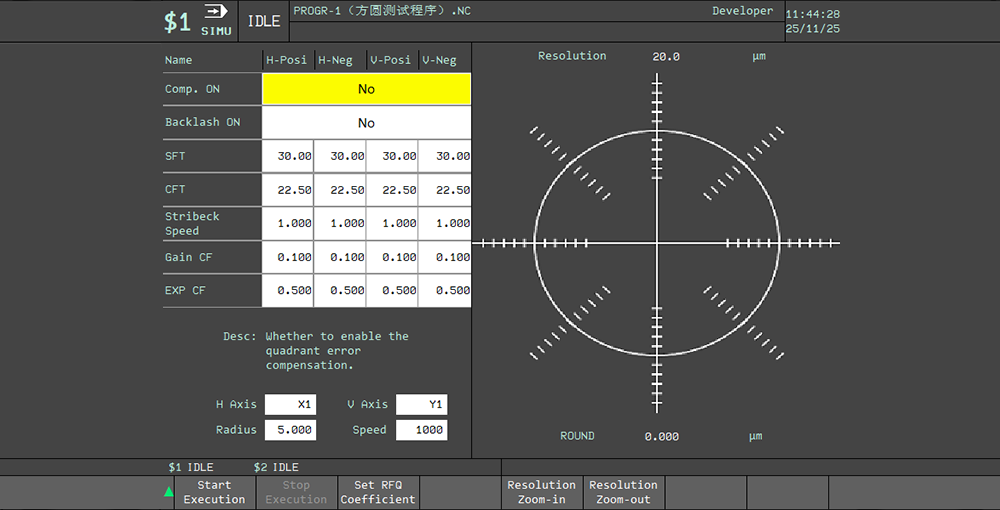

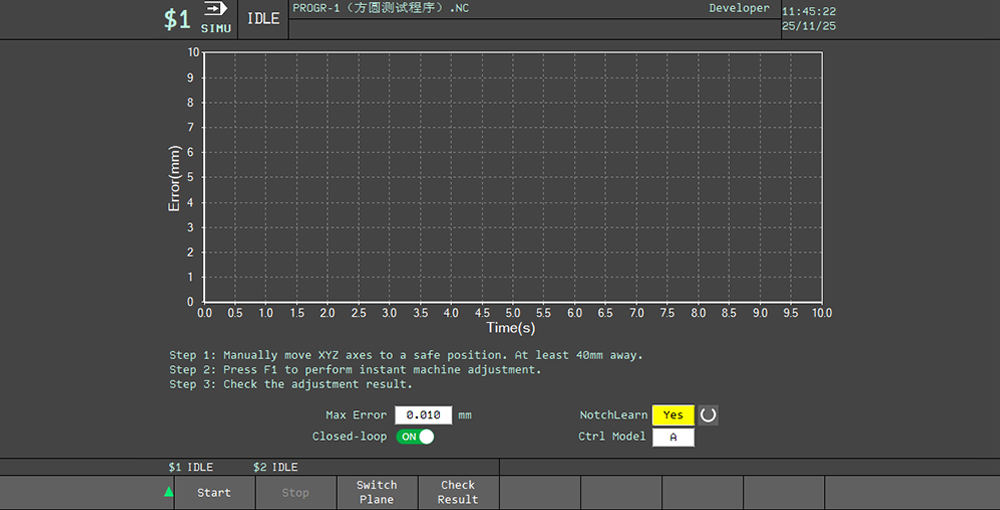

Product Advantages

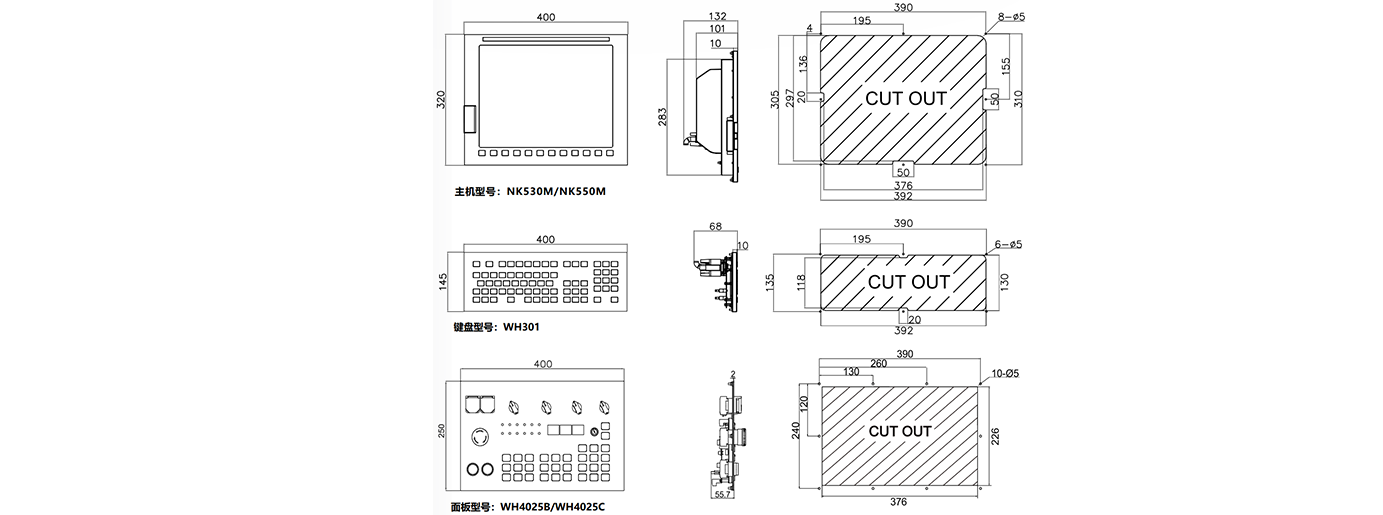

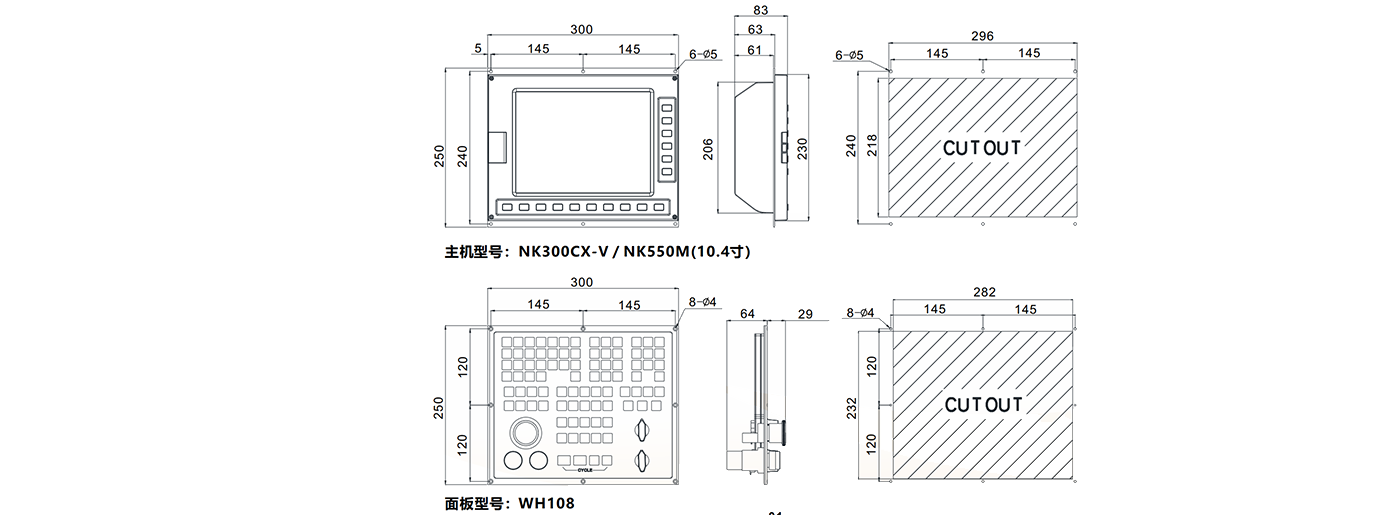

Installation Dimensions
Product Specifications
|
Type |
Product Series | NK300CX/ NK53OM | NK3OOCX PIus | NK3OOCX-5 PIus | |||
| Product specifications | Configuration | - | - | - | - | Package A | Package B |
| Mechanical Group (maximum main system axis group) | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number of Multi-channel Function Groups (excluding workpiece loading and unloading channels) | 1 | 1 | 1 | 1 | 1 | 1 | |
| Standard Number of Control Feed Axes (standard) | 4 | 5 | 8 | 8 | 4 | 8 | |
| Maximum Number of Control Feed Axes (registration) | - | - | - | - | 6 | 10 | |
| Maximum Number of Spindles | 2 | 3 | 6 | 6 | 4 | 6 | |
| Maximum Number of Synchronized Control Axes | 4 | 4 | 5 | 5 | 4 | 5 | |
| RTCP | - | - | - | · | - | · | |
| Hardware specifications | Size | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ |
| Memory | 30G | 30G | 30G | 30G | 30G | 30G | |
| USB | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | |
| IO Standard Configuration | 38/18 | 38/18 | 38/18 | 38/18 | 38/18 | 38/18 | |
| Network Port | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit | |
● Standard ○ Optional - Not supported
