Product Introduction

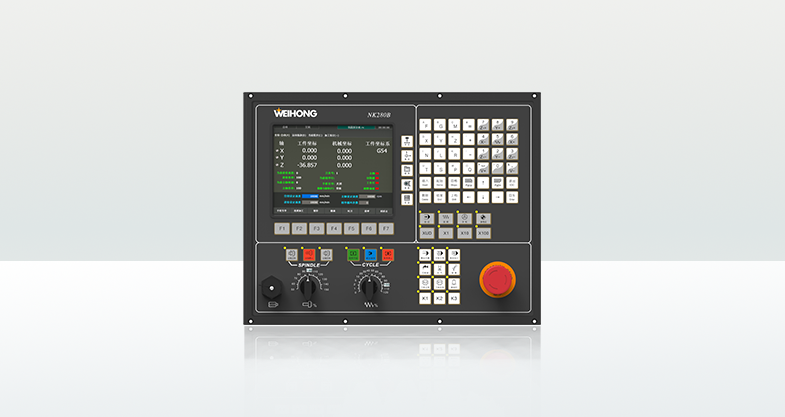

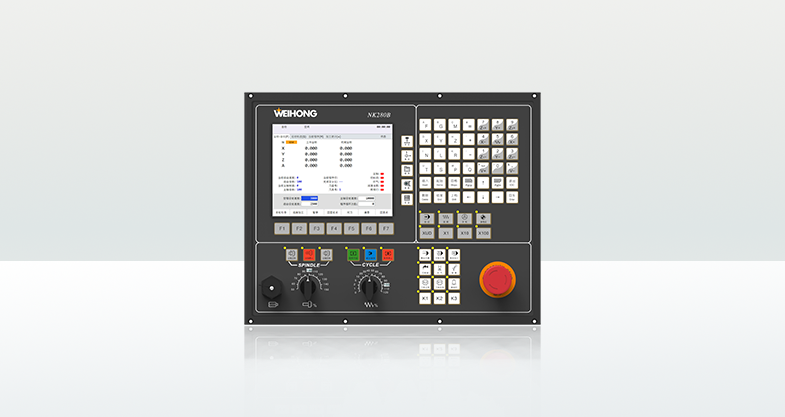

Weihong NK280B integrated CNC control system, 8-inch screen; 512M memory, 512M hard disk; Suitable for compact engraving machines, the system supports 3~5 axes and can achieve dual-Z and 5-axis linkage control; Supports M2/M3/EtherCAT bus.

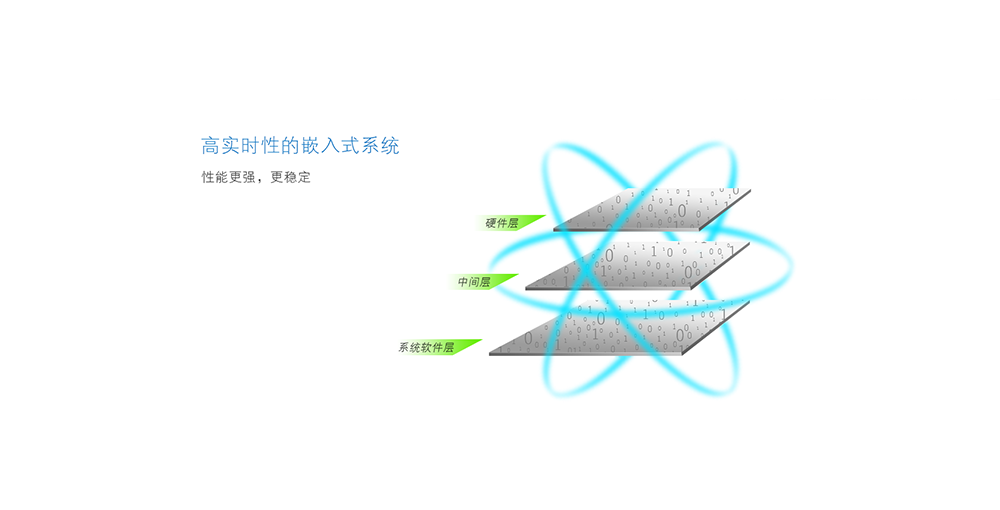

Product Advantages

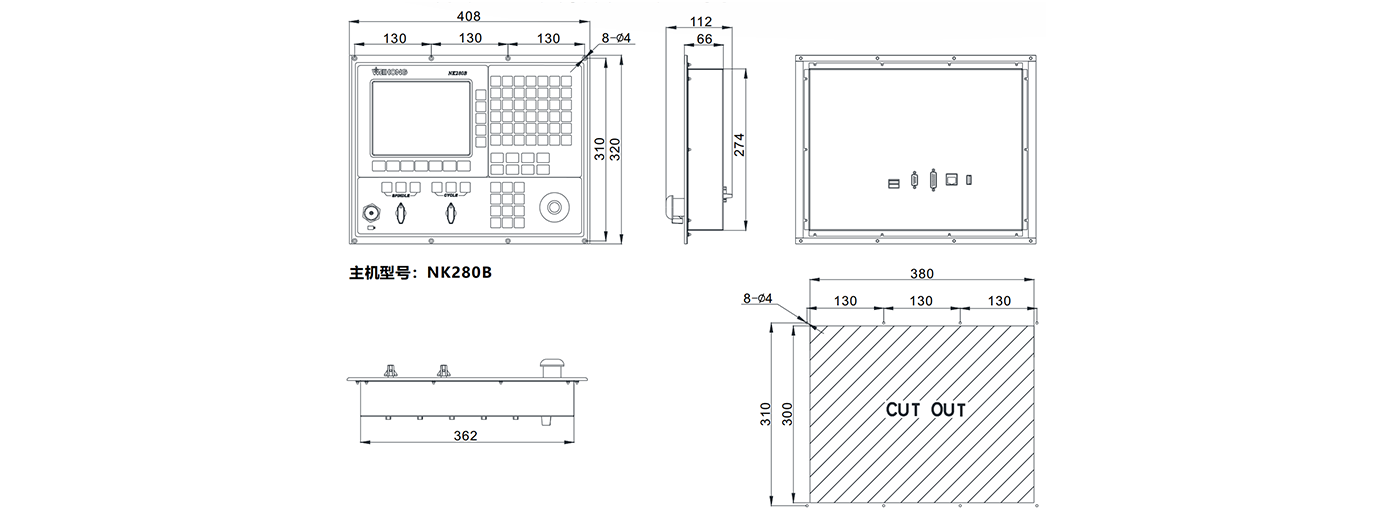

Installation Dimensions
Product Parameters
| Type | Product Series | NK280B | |||
| Product specifications | Mechanical Group (maximum main system axis group) | 1 | 1 | 1 | 1 |
| Number of Multi-channel Function Groups (excluding workpiece loading and unloading channels) | 1 | 1 | 1 | 1 | |
| Standard Number of Control Feed Axes (standard) | 3 | 4 | 5 | 5 | |
| Maximum Number of Spindles | 1 | 2 | 2 | 2 | |
| Maximum Number of Synchronized Control Axes | 3 | 4 | 4 | 5 | |
| Hardware specifications | Size | 8' | 8' | 8' | 8' |
| Memory | 512M | 512M | 512M | 512M | |
| USB | 2 | 2 | 2 | 2 | |
| IO Standard Configuration | 38/18 | 38/18 | 38/18 | 38/18 | |
| Network Port | 100 megabits | 100 megabits | 100 megabits | 100 megabits | |
● Standard ○ Optional - Not supported
