Product Introduction

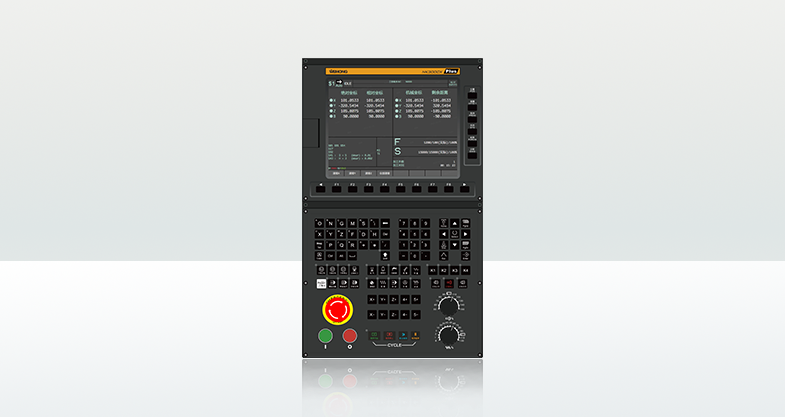

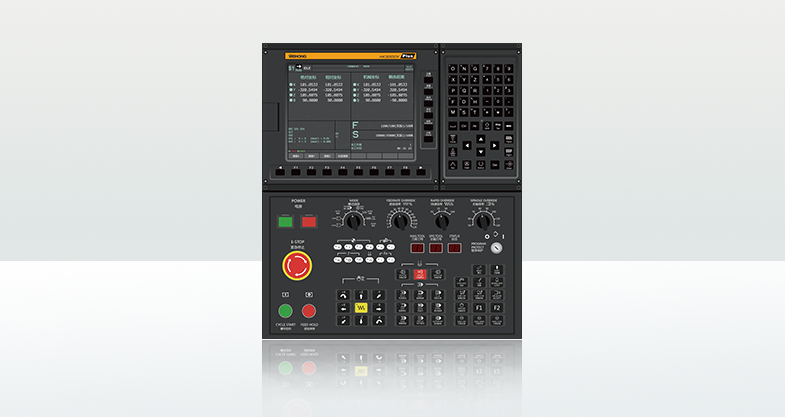

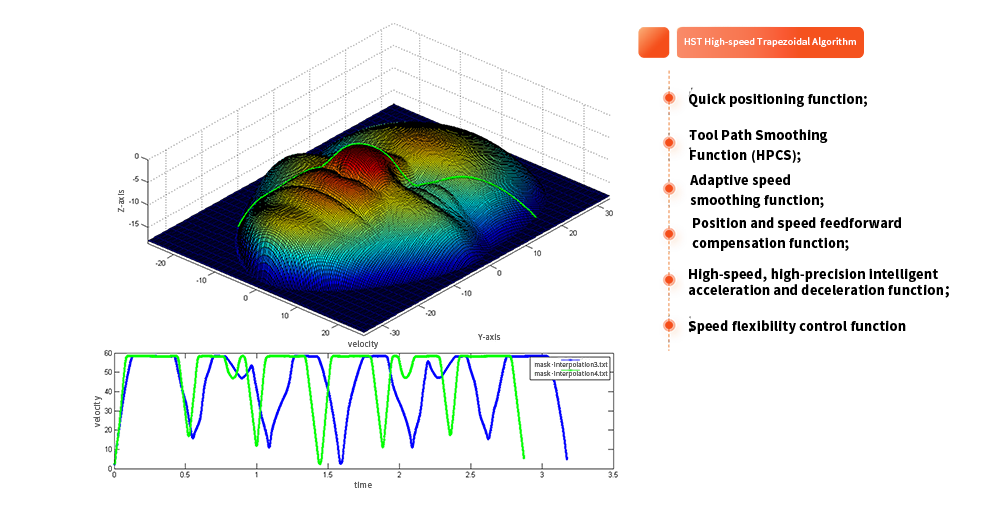

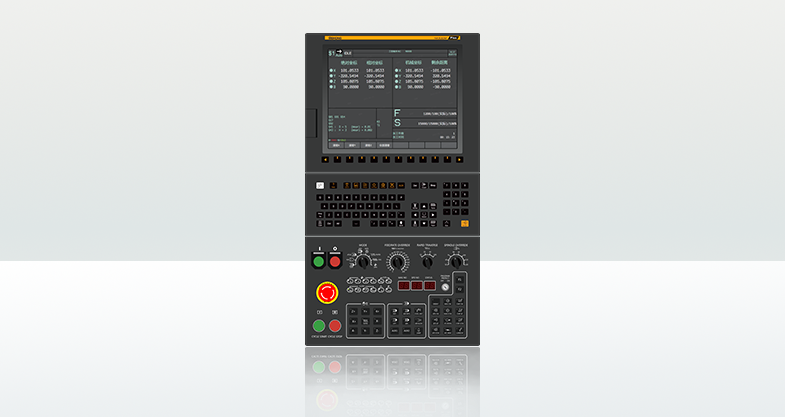

The Weihong NK300CX PLUS CNC system features a 10.4/15-inch screen, an Intel dual-core CPU high-performance processor, a 32/64-bit system, and isafe3.0 encryption. It boasts 2G of memory and a 30G hard drive, offering ample storage capacity. The system is suitable for general-purpose precision engraving machines, machining centers, and gantry machines. Equipped with the HST high-speed trapezoidal algorithm, it enables high-speed and high-quality machining. It supports 3-5 axis linkage, with a maximum of 10 axes, and supports M2/M3/EtherCAT buses. It enables instant file loading, with a maximum support for 4GB file loading.
Product Advantages

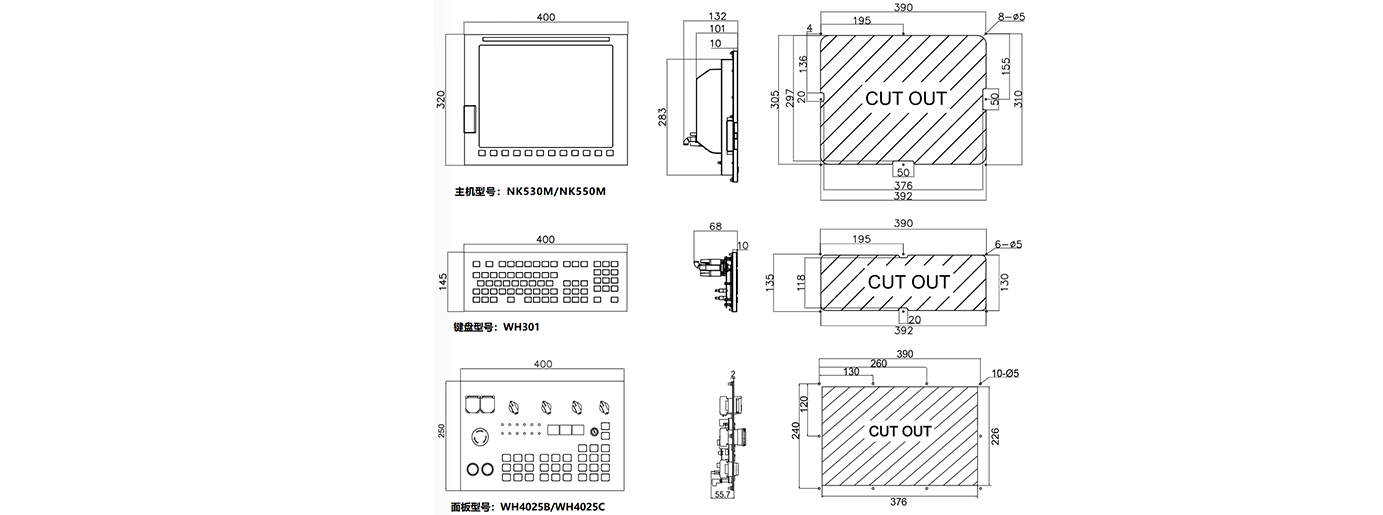

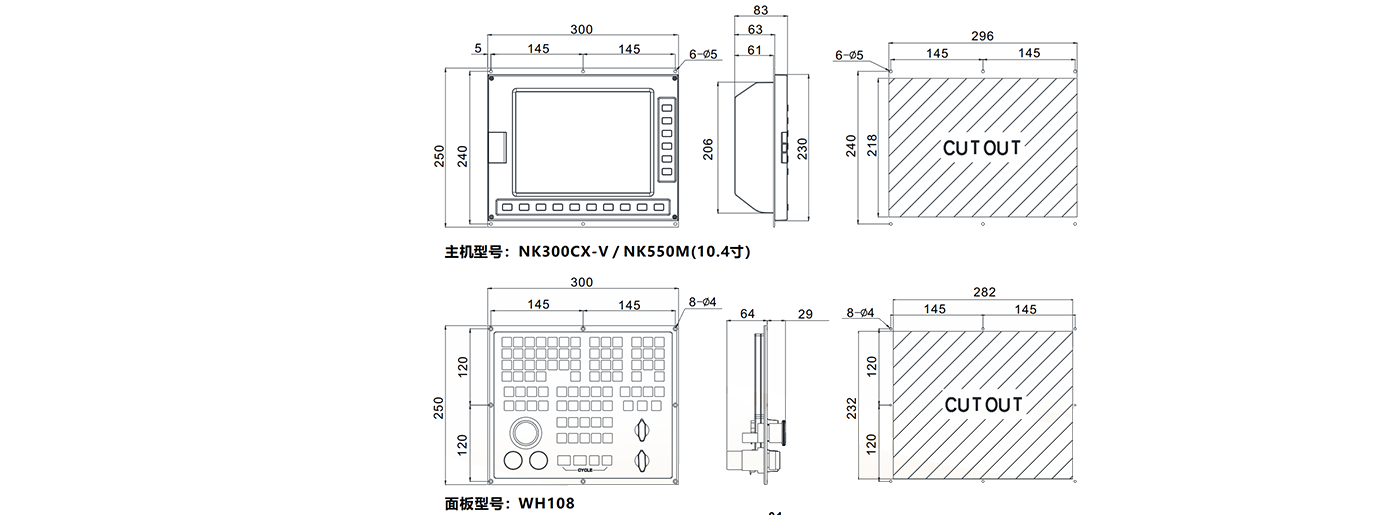

Installation Dimensions
Product Parameters
|
Type
|
Product Series | NK300CX/ NK53OM | NK3OOCX PIus | NK3OOCX-5 PIus | |||
| Product specifications | Configuration | - | - | - | - | A包 | B包 |
| Mechanical Group (maximum main system axis group) | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number of Multi-channel Function Groups (excluding workpiece loading and unloading channels) | 1 | 1 | 1 | 1 | 1 | 1 | |
| Standard Number of Control Feed Axes (standard) | 4 | 5 | 8 | 8 | 4 | 8 | |
| Maximum Number of Control Feed Axes (Registration) | - | - | - | - | 6 | 10 | |
| Maximum Number of Spindles | 2 | 3 | 6 | 6 | 4 | 6 | |
| Maximum Number of Synchronized Control Axes | 4 | 4 | 5 | 5 | 4 | 5 | |
| RTCP | - | - | - | · | - | · | |
| Hardware specifications | Size | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ |
| Memory | 30G | 30G | 30G | 30G | 30G | 30G | |
| USB | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | |
| IO Standard Configuration | 38/18 | 38/18 | 38/18 | 38/18 | 38/18 | 38/18 | |
| Maximum Number of Spindles | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit | |
●Standard ○Optional -Not supported
