Item

FE30M Series

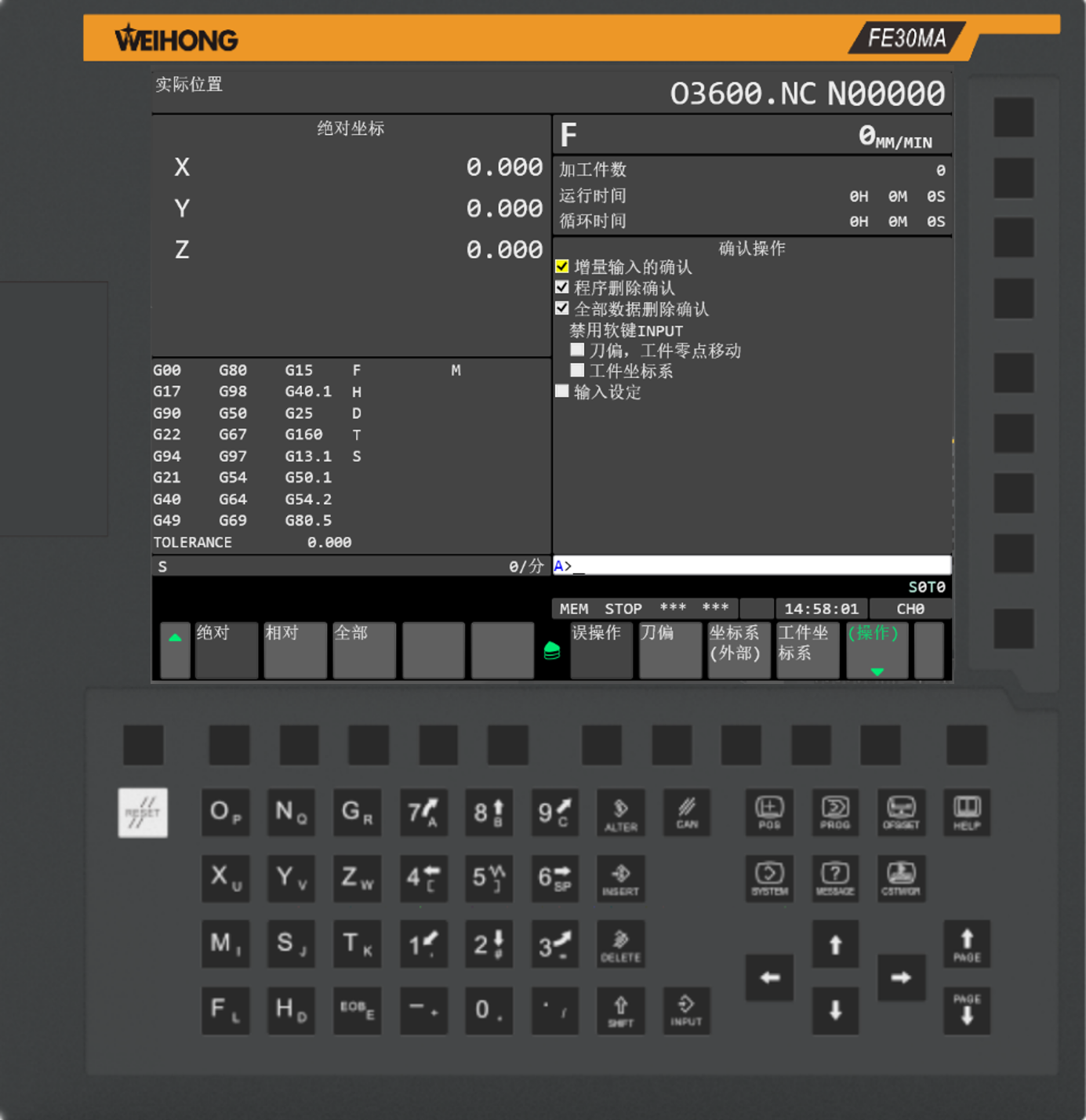

FE30MA

FE30MB

Product Specifications

Maximum Main System Axis Group (optional)

1(2)

2

Maximum Number of PLC Axis Groups

1

1

Maximum Number of Control Axes

10

13

Standard Number of  Control Feed Axes (standard)

6

8(16)

Maximum Number of Control Feed Axes (optional)

6

9

Maximum Number of Spindles

4

4

Maximum Number of Synchronized Control Axes (single axis group)

4

4

Number of Multi-channel Function Groups (optional)

4

4

Block Processing Time

3000

3000

Function

High-speed and High-precision Algorithm-five-axis Function

Acceleration Trapezoidal Algorithm

●

●

Faulty Point Handling

●

●

Feedforward Compensation Function

●

●

Short Line Segment Speed Smoothing (adaptive)

o

●

Trajectory Preprocessing Function

o

●

Multiple Sets of Processing Conditions

●

●

RTCP Blade Tip Tracking

-

O

HPCS-HPPS

●

●

HST Algorithm

●

●

Inclined Surface Processing

-

O

3D Tool Compensation

-

O
