Product Introduction
Weihong NK300CXPLUS/NK530M PLUS integrated CNC system , 10.4/15-inch screen, Intel dual-core CPU high-performance processor, 32/64 bit system isafe3.0 encryption; 2G memory, 30G hard drive; Suitable for general engraving machine, machining center, and gantry, the system is equipped with HST high-speed trapezoidal algorithm for high-speed and high-quality processing; Supports 3-5 axis linkage, up to 10 axes, supports M2/M3/EtherCAT bus, file loading in seconds, and supports up to 4GB file loading.

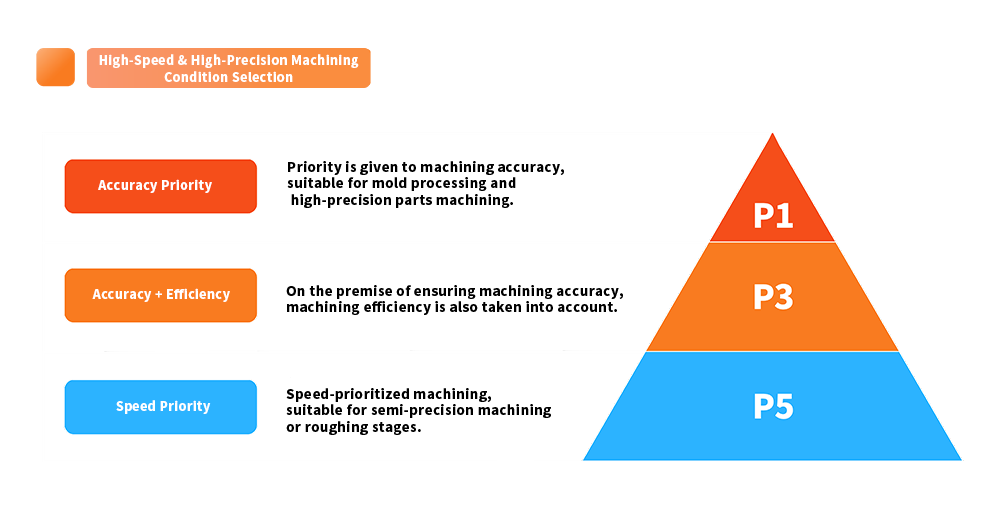

Product Advantages

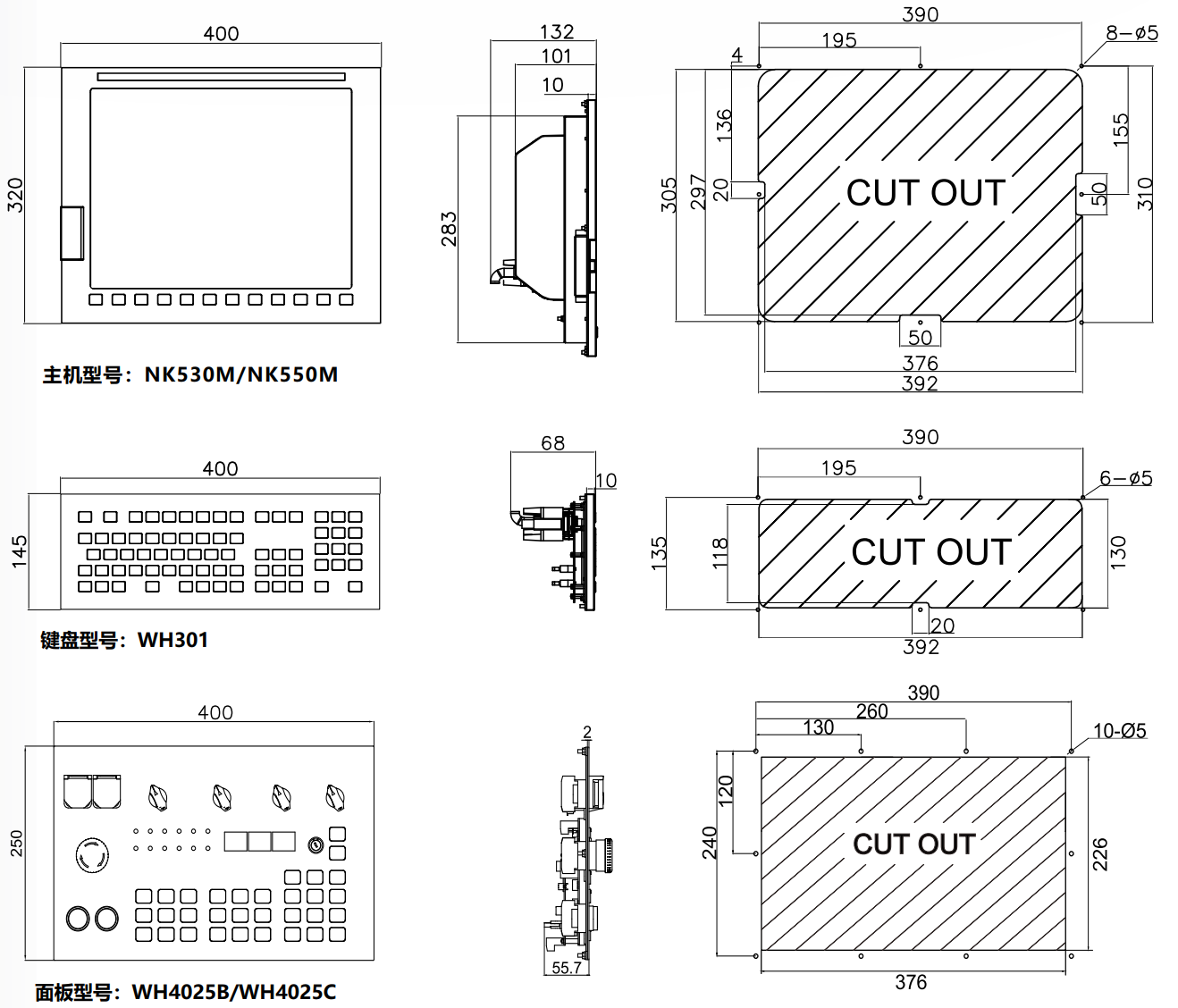

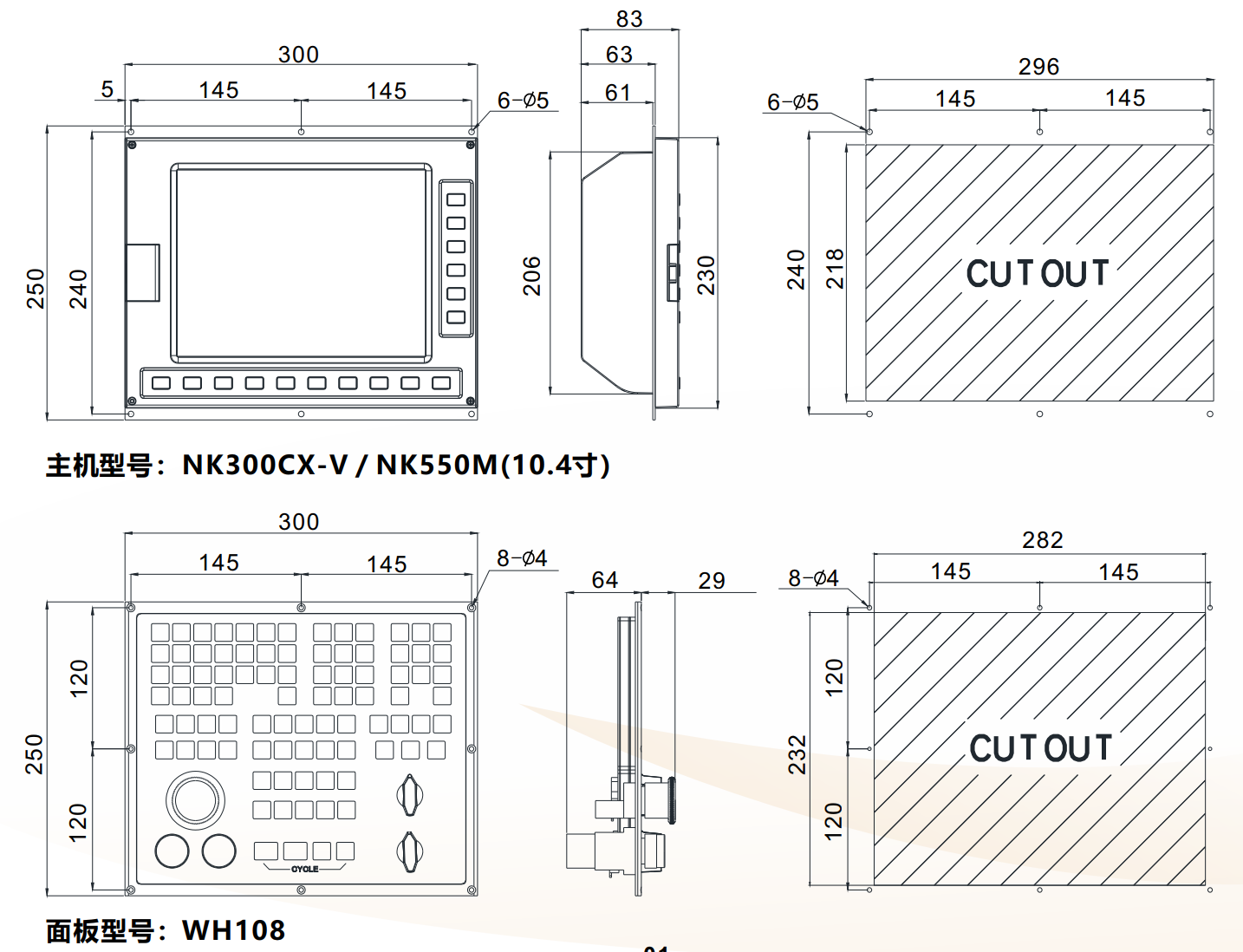

Installation Dimensions
Product Specifications
|
Type
|
Product Series | NK300CX/ NK53OM | NK3OOCX PIus | NK3OOCX-5 PIus | |||
| Product Specifications | Configuration | - | - | - | - | Package A | Package B |
| Mechanical Group (maximum main system axis group) | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number of Multi-channel Function Groups (excluding workpiece loading and unloading channels) | 1 | 1 | 1 | 1 | 1 | 1 | |
| Standard Number of Control Feed Axes (standard) | 4 | 5 | 8 | 8 | 4 | 8 | |
| Maximum Number of Control Feed Axes (registration) | - | - | - | - | 6 | 10 | |
| Maximum Number of Spindles | 2 | 3 | 6 | 6 | 4 | 6 | |
| Maximum Number of Synchronized Control Axes | 4 | 4 | 5 | 5 | 4 | 5 | |
| RTCP | - | - | - | · | - | · | |
| Hardware Specifications | Size | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ | 10.4‘/15’ |
| Memory | 30G | 30G | 30G | 30G | 30G | 30G | |
| USB | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | |
| IO Standard Configuration | 38/18 | 38/18 | 38/18 | 38/18 | 38/18 | 38/18 | |
| Maximum Number of Spindles | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit | 千兆 | |
●Standard ○Optional -Not supported
