CNC Specifications

Standard Number of Controlled Axes

Supports Three to Five Axes

Control Signal

Pulse frequency

1MHz

Control Mode Type

Position Control

Control Information Type

Differential Signal

Position Signal Type

Pulse + Direction

Communication Methods

External Communication

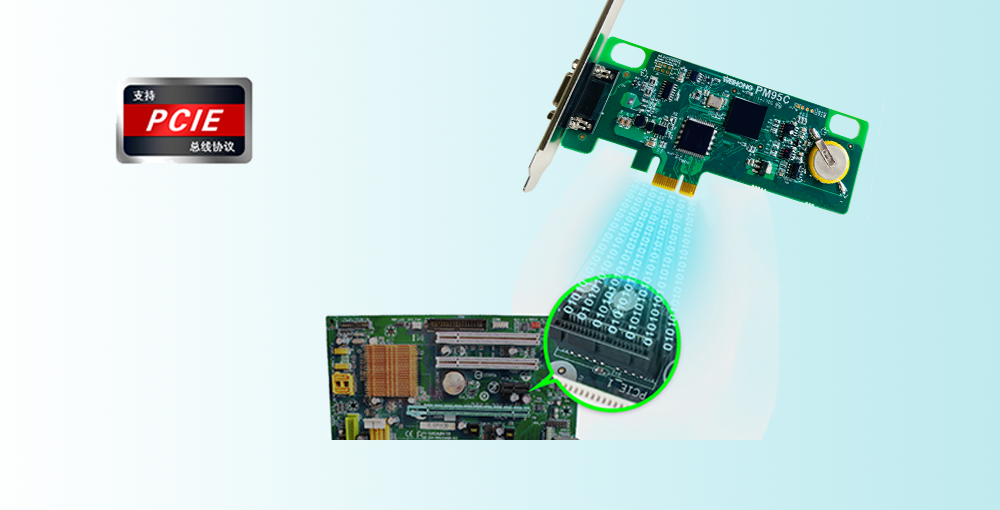

PCI-E

Interacting with Ronda

PHOENIX Bus

Spindle Function

Analog Voltage Output

0-10V Control

Tool Management Function

Tool Setting Mode

Supports automatic and manual tool setting

Tool Setting Types

Fixed Tool Setting, Floating Tool Setting, Initial Tool Setting/Tool Setting After Tool Change

compensation function

Compensation Types

Lead screw error compensation, Backlash compensation, Over-travel error compensation, Tool compensation

Toolpath File

Supported File Formats

*.g；*.nc；*.ug;*.demo;*.iso;*.eng;*.cut;*.dxf;*.plt;*.txt

Operating Function

Coordinate System Setting

Supports G54-G59 coordinate systems and saves the origin point.

Processing Technology

Array function, rotational mirroring, cyclic machining

Convenient Operation

Handwheel guidance, resume from breakpoint, tool selection for machining.

High-speed and High-precision Optimization

Various Interpolation Algorithms
T-shaped, S-shaped, LEP

Software Language

Support Chinese and English

Reliability and Safety

CNC Software Alarm
Program error, operation error, overtravel error, PLC error, IO communication error

Protection Level Encryption Function

Adapter
The FPGA firmware version of the device can be viewed, enabling online upgrades

IP20
