Product Introduction

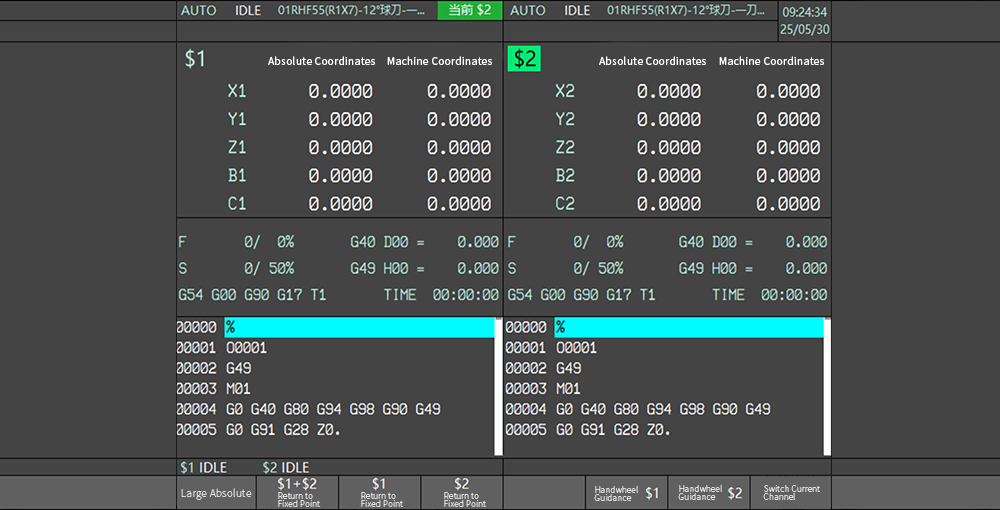

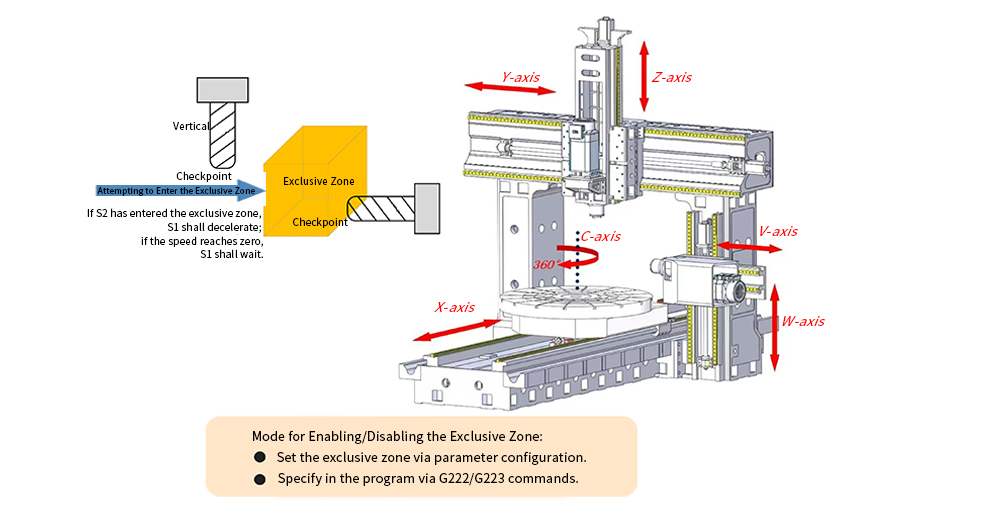

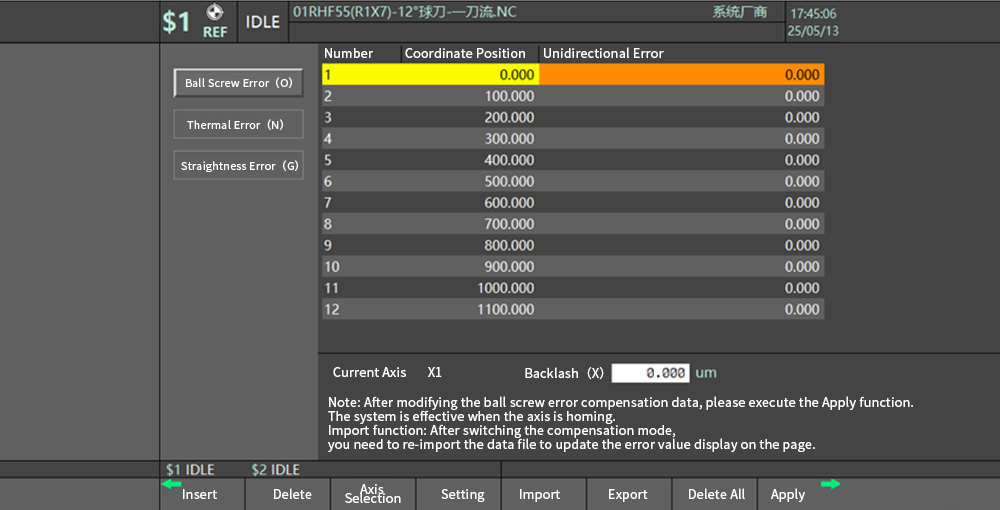

Weihong NK550 Series, 10.4/15-inch screen, Intel dual-core CPU high-performance processor, 64-bit system, isafe3.0 encryption; 2GB memory, 30GB hard drive, large capacity; Suitable for multi-channel composite machine tools, the system supports multi-axis and multi-channel control: Supports up to 4 mechanical units and 8 channel controls, featuring restricted zone detection, exclusive zone settings, and an independently developed multi-channel collision avoidance function. Compatible with various 5-axis machine types, including single-axis and dual-axis RTCP configurations. Supports multiple compensation types: friction compensation, straightness compensation, and perpendicularity compensation.
Product Advantages
Installation Dimensions
Product Specifications
|
Type
|
Product Series | NK55OM | NK55OM-5 |
| Configuration | - | Package A | Package B |
| Product specifications | Mechanical Group (maximum main system axis group) | 2 | 3（4） |
| Number of Multi-channel Function Groups (excluding workpiece loading and unloading channels) | 4 | 8 | |
| Standard Number of Control Feed Axes (standard) | 4+4 | 6+6+6 | |
| Maximum Number of Control Feed Axes (registration) | 6+6 | 6+6+6+6 | |
| Maximum Number of Spindles | 4 | 6 | |
| Maximum Number of Synchronized Control Axes | 4+4 | 5+5+5+5 | |
| Number of Workpiece Loading/Unloading Channels (optional) | ○ | ○ | |
| Number of Axes for Workpiece Loading/Unloading Channel (optional) | ○ | ○ | |
| RTCP | - | ● | |
| Hardware specifications | Size | 10.4‘/15’ | 10.4‘/15’ |
| OS | 64位 | 64位 | |
| Memory | 30G | 30G | |
| USB | 4 | 4 | |
| IO Standard Configuration | 38/18 | 38/18 | |
| Network Port | Gigabit | Gigabit |
● Standard
O Optional
-Not supported
