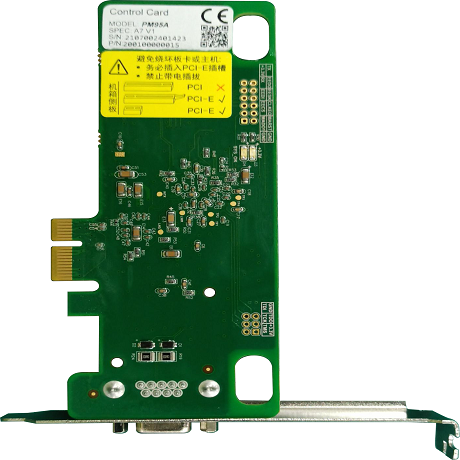

PM95A






产品描述图1
产品描述图2
产品描述图3

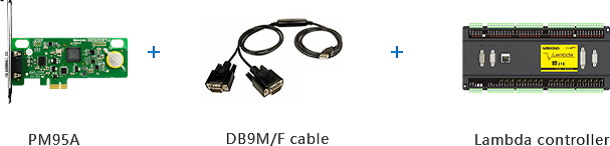

  • Product Configuration

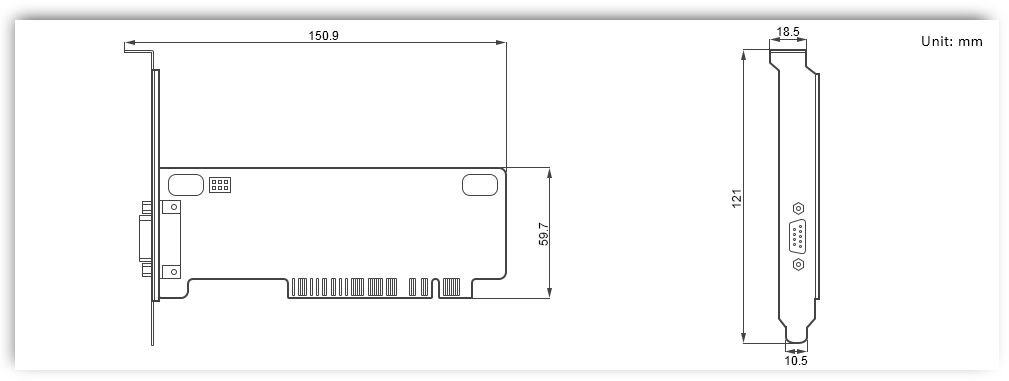

  • Mounting Dimension

Specification parameters

CNC Specification

Number of Axes Supported
3-5axes

Control Signals

Pulse Frequency
1MHz

Control Mode
Position control

Control Signal
Differential signals

Position Signal Type
Pulse+Direction

Communication

External
PCI-E

Interactive with Lambda
PHOENIX bus

Spindle

Analog Voltage Output
0-10V

Tool Measurement

Tool Measurement Mode
Fixed calibration, Mobile calibration, First calibration & Calibration after tool change

Compensation

Compensation Type
Screw error compensation, Backlash compensation, AQE compensation, Tool compensation

Toolpath File

Supported File Format
*.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt

Operations

WCS
Supporting WCS G54-G59 and Work Zero saving

Processing Technology
Array, Mirror&rotate, Cycle machining

Convenient Operation

Handwheel guide, Breakpoint resume, Tool selection

High-speed High-precision Optimization

Interpolation Algorithms
T-type, S-type and LEP algorithms

Software Language

Chinese,English

Safety & Reliability

Sofeware Alarms
Alarms of program error, operation error, over-travel error, PLC error, and IO communication error

Widely applied in…

Successful Cases



All-in-one flat and circular engraving machine
Rosewood engraving machine
Mold milling machine
3-Z milling machine
