From "Closed Black Box" to "Open Platform"

Not Just an Upgrade, but a Redefinition

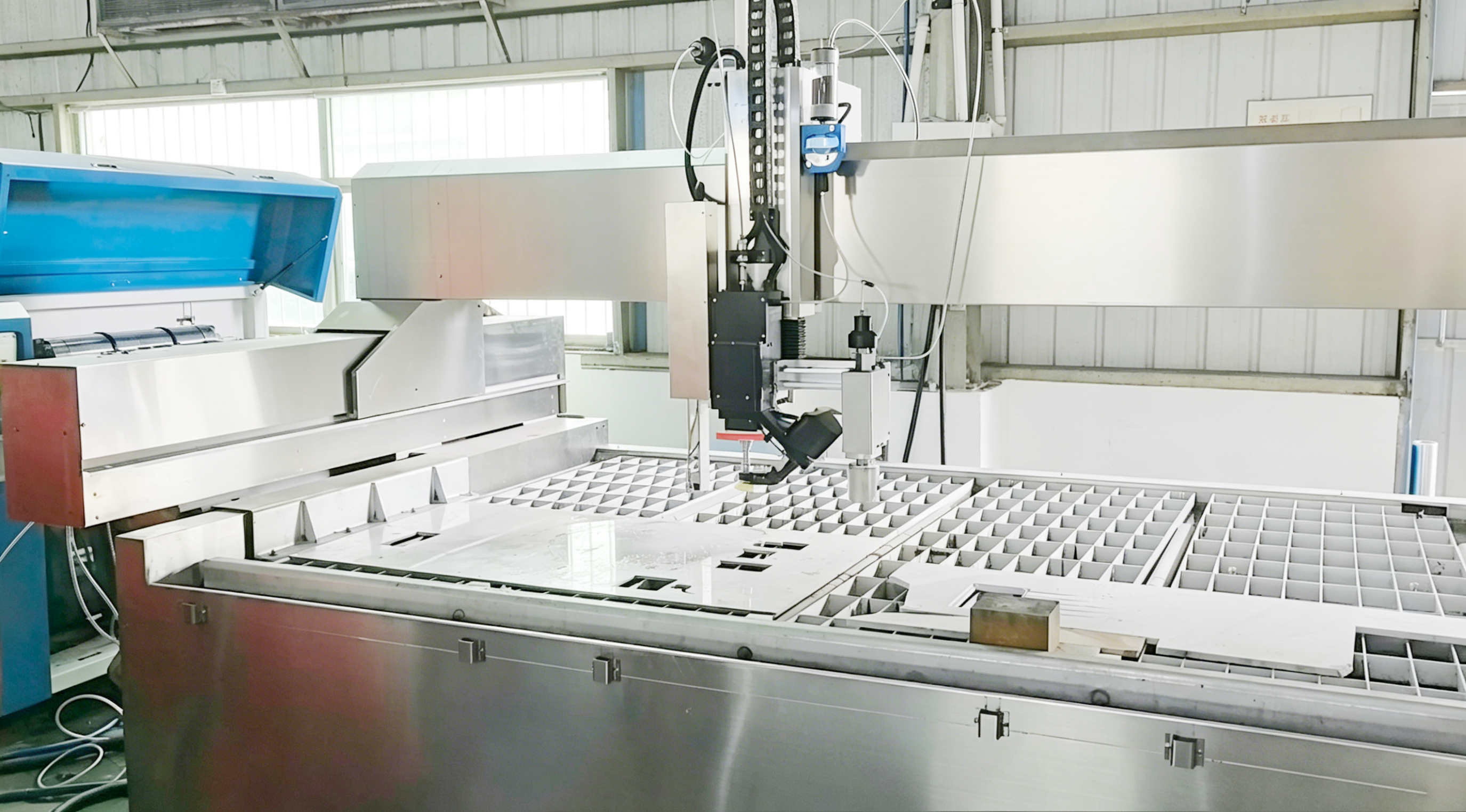

Weihong V20 waterjet CNC system

Equipped with a new generation of CNC platform

Make equipment processing smarter and more convenient!





Traditional CNC System Bottleneck



Even minor modifications to the machine tool require software development support, resulting in a long cycle.

The language adaptation of export equipment is difficult to change, and the translation requires code modification, making it difficult for non-technical personnel to participate.

The separation of CNC programming and CAM design leads to errors and low efficiency in data conversion.

Modifying a simple graphic also requires opening CAD software, which is inefficient.

Faced with high-end applications such as 3D surfaces and composite materials, traditional 2.5D systems are powerless.



Weihong V20 Waterjet CNC System
Eliminate these bottlenecks
One by one, it becomes a knob that can be easily adjusted



NcConfig: Configuration Tool



Return the initiative of debugging to device manufacturers and end users.

Past:

Change an IO point

Add a peripheral device

Adjust a control logic

Send requirements to R&D, wait for scheduling, wait for version release, wait for testing

A month has passed



Now:

NcConfig Configuration Tool

Enable non-software engineers to complete system adaptation



Free definition of IO and peripheral devices: drag and drop, configure, save, and take effect. No need to reset parameters after adjustment;

Take the initiative in core debugging: shorten the production cycle from "weekly level" to "minute level";

Equipment modifications no longer rely on R&D: on-site personnel can complete them;

Summary: The debugging efficiency between machine tool manufacturers and end users has been improved by an order of magnitude.



Multilingualism and Resource Management



One Development, Global Deployment.



Past:

Export equipment should be adapted to the local language

Software interface translation requires code modification, recompilation, and republishing

The translation is not accurate and needs to be corrected by the R&D personnel

Repeated communication between language experts and technicians



Now:

Multilingualism and Resource Management System

Non-technical personnel can complete language switching and translation



No need to modify the code, switch the target language directly on the interface;

Non-technical personnel (even local operators) can complete precise translation - they understand professional terminology the most and translate the most accurately;

One development, global deployment. Significantly reduce overseas delivery and maintenance costs.

Summary: One development, global deployment. Significantly reduce overseas delivery and maintenance costs.



New CAM Platform+CNC and CAM Integration



Design and Processing Zero Distance.



Past:

Separation of CNC programming and CAM design

The engineer has programmed the tool path on the computer

Transfer to the machine tool for trial cutting, and if any problems are found, return to the computer for modification…

Back and forth transmission, data is prone to errors and inefficient



Now:

New CAM Platform Directly Implanted into the System

Deep integration with CNC core



Integrating various advanced technologies from various industries: texture alignment, tube intersection, complex beveling... efficient and accurate programming.

Complete the entire process from graphics to tool path on the same platform: seamless operation, eliminating data conversion errors.

Complex processes no longer rely on employee experience: the system has built-in process templates, and even newcomers can create high-quality tool paths.

Summary: CNC and CAM are no longer separated, programming and machining are truly closed-loop.



Multi-Type Pump Station Control



Smart Energy Manager



Past:

Poor linkage between pump station control and system, high energy consumption

Unable to provide energy on demand



Now:

Multi-Type Pump Station Control Module

Make energy management intelligent



The system can intelligently control servo energy-saving pumps, supply energy on demand, and directly reduce energy consumption.

Full digital control, visible energy consumption data, analyzable and optimizable.

Support multiple types of pump stations and flexibly adapt to different hydraulic systems.

Summary: While saving power, it also lets you know where to save it.



3D Programming Module



Passport to Enter High Value-Added Processing.



Past:

Faced with high-end applications such as 3D surfaces, irregular parts, and composite material laminates, traditional 2.5D systems are powerless.



Now:

True 3D Tool Path Planning Capability

Turn "can't do it" into "can do it easily"



Easily handle high-end applications such as curved surfaces, slopes, and composite material laminates processing.

From sheet cutting to 3D processing, upgrading dimensions and expanding business boundaries.

Passport to enter high value-added processing field.

Summary: What others cannot do, you can do - this is pricing power.



Smarter, Simpler, Stronger

Weihong V20 Waterjet CNC System

From "Closed Black Box" to "Open Platform"

Your Device, You Make the Decision
